Product overview:
[Features]
◆ Directly connect to BS610-4 or via BS1000-5 to BS610-4
◆ Door-locking devices such as electronic locks, door sensor, push button can be connected directly to universal card reader. Simple wiring and cost saving
◆ Store up to 5 Super User Cards to be used during emergency to open door. Setup can be via controller
◆ Real-time display door open events from controller in Chinese or English
◆ Connect to controller via RS-485
◆ Can externally connect 1 wiegand reader to be used for card open door
◆ Support Card：EM, Mifare
◆ Open Door Method：Card Only，Card + PIN，Secure PIN
◆ Controller automatically adjust time
◆ CE Certified
-
Detail parameters:
[Technical Specification]
Parameters
BS36K-UM
Link to Controller Type
BS610-4 Network Controller, BS1000-5 Door Controller
RS-485 Output
To communicate with controller
Connect Wiegand Reader
1，connect to wiegand 26/34 bits reader or free wiegand reader
Support Card
EM, Mifare
Open Door Method
Card Only, Card + PIN, PIN Only
Super User Card
Setup via controller, can store up to 5 cards, use to open door during emergency
Push Button Open Door
1
Door Sensor Signal
1
TTL Alarm Output
1
TTL Output
1
Tamper Switch
When there is distruction, buzzer will sound alarm and at the same time triggered an alarm event to PC
Alarm Relay
1, 12V/1A
Door Relay
1, 12V/1A
Time Correction
Controller automatic adjust time
Baud Rate
1200-19200bps. Default is 19200bps
Device ID Setup
001-254. Default is 1
Terminal Resistance
Setup using jumper
Keypad
4x4, blue backlight
LCD
128x64 dots ，white backlight，chinese & english menu
Buzzer
1
Power Supply
9-30VDC,300mA
Operation Temperature
-10~50 °C
Dimension
132×85×32mm
Housing
ABS flame-resistant
-
Installation mode:

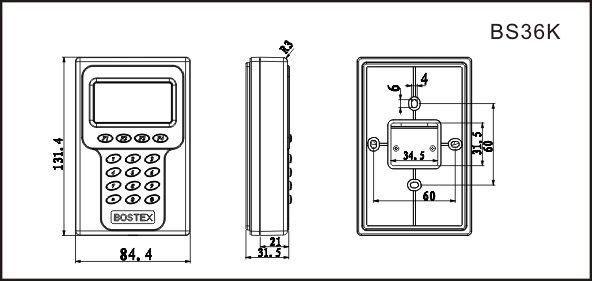

[Installation Measurement]
