Product overview:
[Features]
◆ Using 32 bit ARM chip set, operate on LINUX OS, speed up to 200MHz
◆ Direct connection to PC via TCP/IP port. Need not require TCP/IP converter. Transmission speed up to 100Mbps
◆ Controlling a 128-story elevator
◆ Able to link with intercom systems and manage up to 142 households
◆ Max. 100,000 Card Holder; Max 100,000 lines transaction
◆ Using Flash Memory to store data. Data can be stored up till 10 years
◆ Recoverable 100,000 lines of transaction should there be any system failure
◆ Update firmware via TCP/IP or RS-232 connector
◆ Equipped with input supervisory circuits. Able to send fault alert should there be any line tamper or interruption
◆ Integrated with PLC function
◆ CE Certified -
Detail parameters:
[Functions]
Function
Description
Connect External Reader
Connect RS-485 reader, RS-485 card reader module, or RS-485 keypad reader to BS1000-5
Connect External BS1000-5
Connect Card Reader via BS1000-5 to BS610-4L controller
Connect External BS1000-1
Can connect to 16 units of BS1000-1, each BS1000-1 comes with 8 DI and 8 DO, which can manage up to 128 floors elevator and is able to connect to 142 households intercom system
Communicate with PC
1. RS-232/485 or TCP/IP. Use dial-up switch to set RS-232 or RS-485
2. Use keypad to setup Controller ID
3. Use Keypad to setup IP Address, Subnet Mask and GatewayOffline add and delete card
Yes
Dual cards Verification
Yes
Same Card Delay Control
0~255 seconds. Factory default is 0
Time Zone Control
32 groups of time zone
Holiday Control
Yes
Report Loss Card
Yes
Card Validity Control
Yes
Door Auto Release Time Zone
Yes
Card No. Output Byte
1~4. Default is 4
Card Display Format
HEX,DEC,ABA,USER CODE. Default is DEC
Communication Monitoring
Tamper Alarm
Yes
Terminal Resistance
Via Dial-up switch to determine whether or not to terminate resistance
RS-485 Reader ID Setup
RS-485 Reader has to connect to BS1000-5 and changes ID address via controller
Power Monitoring
Main power supply failure alarm and backup battery low voltage alarm
Connect External Battery
Yes
[Technical Specification]
Parameter
Description
CPU
ARM9, processor speed up till 203MHz
Operating System
Linux
Card Capacity
100,000
Card Matching Speed
< 1 seconds when controller card storage reaching 100,000 cards
Storage Capacity
100,000 lines, on 64M SDRAM and 16M NOR FLASH
No. of Floors Control
128
Intercom Linkage
Can connect to 142 households intercom system
3 ports，Com0 & Com1 can be switched to RS-232 or RS-485 using dial-up switch
(1) Com1 – PC or child controller
(2) Com2 – BS1000-5, BS1000-1, universal reader
(3) Com0 – Factory debuggingTCP/IP
1, communicate with PC at 10M/100M
USB
2个Master USB
IIC
1
SD卡
1
JTAG
1
Operation Keypad
128x64 dots LCD, 4x4 keypad
TTL Input
16, for PLC use
Analog Input
7
Relay Output
8, 12V/10A, can control floor's button
TTL Output
8, 5V/300mA, controllign floor's button, can change to become relay signal using TTL converter
Reset Switch
Yes
Tamper Switch
Yes
Buzzer
Yes
Clock Power Battery
CR2032,3V
Supply Voltage
9-30V/400mA
Operation Temperature
-10~50 ℃
Dimension
192 X 129 X 63mm
Casing
ABS flame-resistant
-
Installation mode:

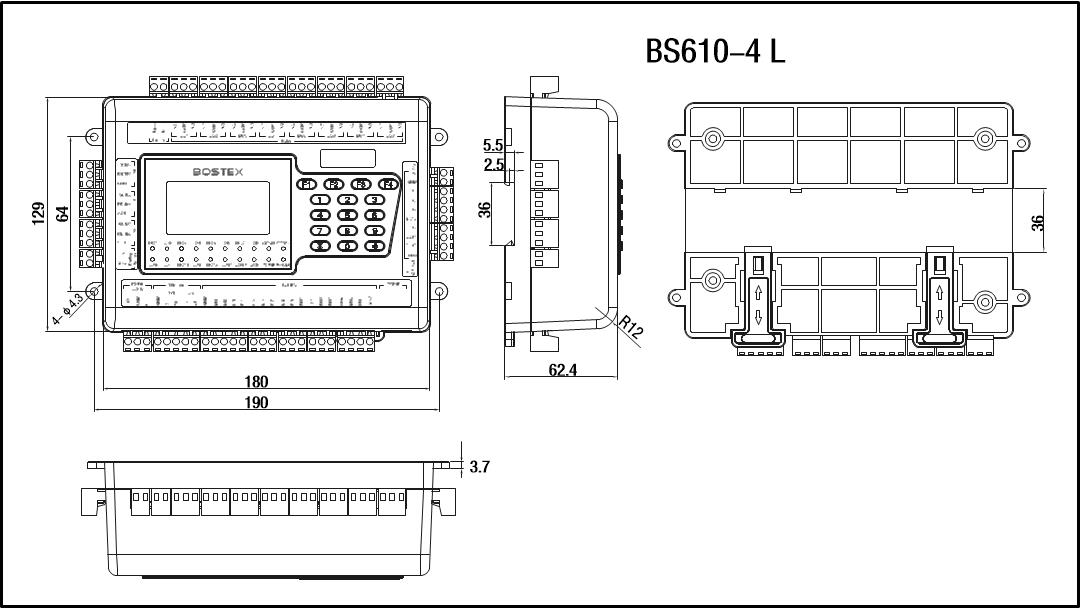

[Installation Measurement]
