Function

Description

Card Open Door

Connect wiegand reader or RS-485 reader

Card + PIN Open Door

1. Connect external BS36K-UM universal reader via       RS-485 onnector
2. Choose either PIN open door or Card ID open door
3. Card + PIN: 4 digits PIN; PIN Only : 8 digits PIN

PIN Open Door

Card ID Open Door

Fingerprint Open Door

Connect BS fingerprint card reader via wiegand. At the same time the following mode can be implemented: Card + Fingerprint, ID + Fingerprint, Fingerprint + PIN, Card + Fingerprint + PIN, ID + Fingerprint + PIN, Card Only, Card + PIN, PIN Only , Card ID Only etc.

Super User Card Open Door

In case of emergency or system failure, make use of super user card to open door. (used with universal reader)

Connect External 26/32 Wiegand Card Reader

Yes

Free Wiegand Setup

Yes. Can set low battery voltage alarm when use with long range card reader.

Connect External Keypad Reader

1. Wiegand keypad reader via wiegand connector
2. BS series keypad reader via RS-485 connector

Connect External BS Fingerprint Reader

Via Wiegand

Communicate with PC

Door Force Open Alarm

Yes

Door Open Too Long Alarm

Door open delay can be set from 1~255 seconds. Factory default is 5 seconds. Alarm can be disabled.

Add & Delete Cards During Offline

Yes

Dual cards Verification

Yes

Invalid PIN Control

When using Card + PIN open door and number of PIN retry is over preset limits, the door will be remain locked until locking period is over then it is able to use.

Same Card Delay Control

0~255 seconds. Factory default is 0

Time Zone Control

32 groups of time zone

Holiday Control

Yes

Report Loss Card

Yes

Card Validity Control

Yes

Door Auto Release Time Zone

Yes

Anti-passback

Yes. Can be reset and manage

Card No. Output Byte

1~4. Default is 4

Card Display Format

HEX,DEC,ABA,USER CODE. Default is DEC

Communication Monitoring

Yes

PIN and Time zone Control

Can be setup to use either PIN control or time zone control

Tamper Alarm

Yes

Reset Door Open Too Long

Yes

Terminal Resistance

Via Dial-up switch to determine whether or not to terminate resistance

RS-485 Reader ID Setup

Can be set via controller

Door Interlocking

Can be set on 2 doors or more doors

Power Monitoring

Main power supply failure alarm and backup battery low voltage alarm

Sensor Setup

Door sensor normal behavior; sensitivity control; whether transaction based on door sensor action.

Connect External Battery

Yes

Parameter

BS610-3

BS610-2

CPU

ARM9, processor speed up till 200MHz

Operating System

Linux

Control Door Area

4

2

Connect Wiegand Reader

4

4

Connect RS-485 Reader

8

4

Door Sensor Signal

4

2

Push Button Signal

4

2

TTL Alarm Input

4

4

Door Relay

4, 12V/10A

2, 12V/10A

Alarm Relay

4, 12V/10A

4, 12V/10A

TTL Alarm Output

8,5V/300mA

8, 5V/300mA

Tamper Switch

1

1

Card Capacity

100,000

Card Matching Speed

matching time <0.5second

Transaction Capacity

100,000

COM Port

1. 2 ports
2. Com 1: RS-485communicate with PC
3. Com 0: RS-232/485 Debugging used
Default is RS-232

TCP/IP

1, communicate with PC at 10M/100M

USB

2, Master USB

IIC

1

SD Card

1

JTAG

1

Operation Keypad

128x64 dots LCD, 4x4 keypad

Buzzer

Yes

Clock Power Battery

CR2032,3V

Supply Voltage

9-30V/400mA

Operation Temperature

-10~50 °C

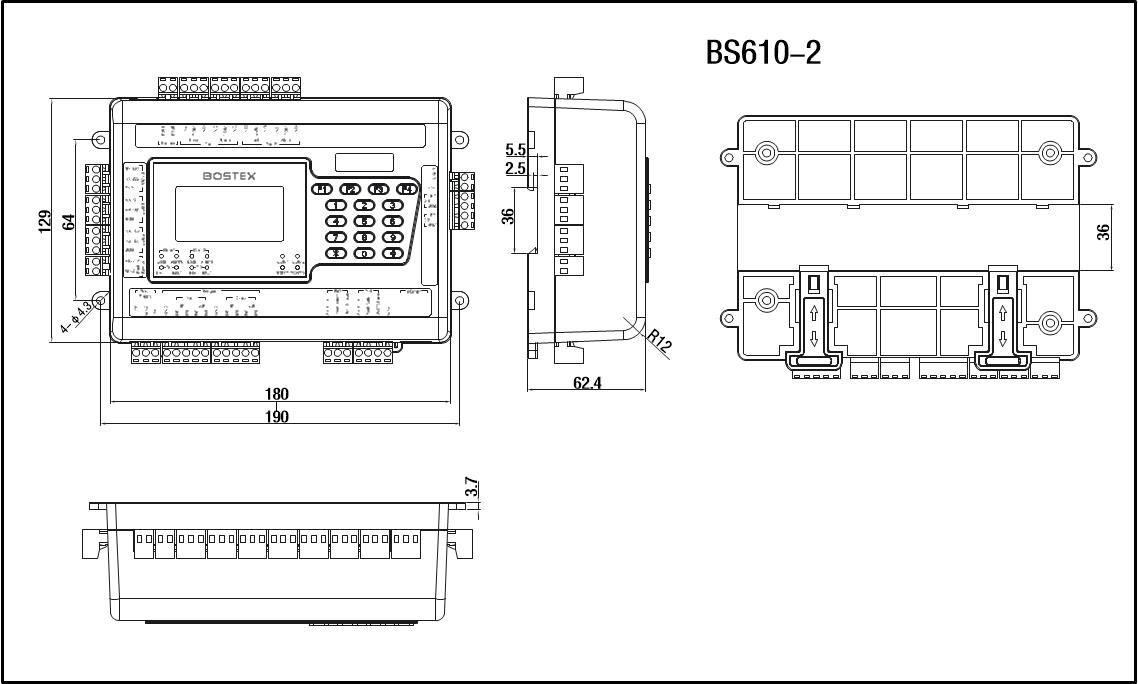

Dimension

190 X 129 X 63mm

Casing

ABS flame-resistant
