Product overview:
[Principle]
Connect controller to normal telephone line. Visitor needs to key in tenants fix phone number (land line number or mobile number) or tenant’s unit number or select from listed room number on the display screen to get in touch with the tenant. After verification, tenant via a key press on the phone will be able to remotely open the door.
Tenant is able to use following mode to open door: card only, card + PIN, fingerprint, fingerprint + PIN and etc. At the same time, image capturing is possible and monitoring can be via IE Browser.
[Features]
◆ Using 32 bit ARM chip set, operate on Linux OS, speed up to 200MHz
◆ Direct connection to PC via TCP/IP port. Transmission speed up to 100Mbps
◆ Maximum 10,000 card holders and 100,000 lines transaction
◆ Make use of existing telephone line to communicate with resident. Need not have dedicated lines from main intercom to each resident unit.
◆ Waived off cabling and use the existing resident telephone
◆ Able to capture visitor's image or person who swap the card
◆ Build-in web server, online surveillance via IE browser
◆ Transaction data can be exported via USB thumb drive in TXT format
◆ Visitor only needs to key in room no. or unit no or search unit no. from list using tenant's name
◆ Can only make call to tenant's number that is already been registered in the system
◆ Call can be route to mobile phone should there be no answer and initiating remote open door action
◆ Support EM/Mifare/TI/HID125 KHZ proximity /HID 13.56 MHz iCLASS card. (Can also use fingerprint verification but only applicable to indoor used)
◆ Able to set 'Do Not Disturb' in required period of time for resident
◆ One telephone line can connect to 6 units of BSVTES
◆ Suitable to use at main entrance of condominium, villa, hostel, office, important warehouse etc
◆ CE Certified -
Detail parameters:
[Functions]
Functions
Description
Visitor Call Type
1. Use keypad to enter resident's room number or unit number
2. Search through list of residents by nameCommunication
Connect normal telephone line or extension line to controller to communicate with resident. Need not to have dedicated line to every residence.
Paging Limitation
Only able to call number that is being registered to the system
Remotely Open Door
Resident can remotely open door by just a key pressed on the phone after identify the caller. Key can be set according to resident preference
Image Capture Support. 8KController keeps up to 800 images, expandable to 100,000 with 1GB SD card. Image size at 8K. Monitoring Built-in Web Server, viewing can be via IE Browser Export Data Via USB thumb drive in TXT format Do Not Disturb Mode
Can be set to certain time frame to avoid nuisance call and to protect resident daily lifestyle and work Centralized Control
One telephone line can connect 6 BSVTES system. Saving system cost
Phone Notification
Consists of engagement tone, ringing tone, indication tone
Speakerphone Build-in microphone and speaker that can talk directly to resident Waterproof
Waterproof designed. Stainless steel casing and metal keypad suitable for outdoor used.
Welcome Text
Can be set
Open Door Method
Use Card, Card + PIN, PIN method to open door. If integrating with fingerprint module, thus inheriting BS364 open door mode, e.g fingerprint open door
Support Card
EM, Mifare, TI, HID125 KHZ proximity , HID 13.56 MHz iCLASS card
Standalone
Can add / delete residence information and necessary setup using keypad and LCD. Need not required software.
Connect with Computer
1. Via 485 or TCP/IP
2. Setup controller Device ID 001 - 255 via keypad
3. Setup IP address, Subnet Mask and Gateway via keypadSystem Software
BTEMS or BTEPS
Others
Inherits all functions from BS511
[Technical Specification]
Parameters
Description
CPU
ARM9, processor speed up till 200MHz
Operating System
Linux
Control Door Area
1
Telephone Line
1 telephone line can connect up to 6 controllers
Connect wiegand reader
2
Magnetic Sensor Signal
1
Push Button Signal
1
TTL Alarm Input
1
Door Open Relay
1个，12V/1A
Alarm Relay
1个，12V/1A
TTL Alarm Output
1个，5V/300mA
Tamper Switch
1
Card Capacity
10,000
Card Matching Speed
<0.5 seconds when controller card storage reaching 10,000 cards
Transaction Capacity
100,000 lines
Tenant Unit's No. Can be set to 16 alpha numeric characters long.
Registered Telephone No.
16 digits long
COM Port
1. 2 ports
2. Com 1: RS-485communicate with PC
3. Com 0: RS-232/485 Debugging used. Default is RS-232TCP/IP
1, communicate with PC at 10M/100M
USB
2 Master USB
SD Card 1 Microphone 1
Speaker
1
Camera
1 (Optional)
Operation Keypad
128x64 dots LCD, Outdoor Type: 4x4 metal keypad；Indoor Type: 4x4 standard keypad
Buzzer
Yes
Clock Power Battery
CR2015,3V
Supply Voltage
9-30V/400mA
Operation Temperature
-10~50 °C
Dimension
Outdoor Type: 307 X 160 X 115 mm
Indoor Type: 230 X 126 X 35 mmCasing
Outdoor Type: Stainless Steel Casing, waterproof designed.
Indoor Type: ABS flame-resistant
[Choosing A Model]
Model No.
Description
BSVTES
Outdoor Type，Stainless steel casing，Waterproof，Metal keypad
BSVTES-IN
Indoor Type, ABS casing
BSVTES-E
Outdoor Type with EM Reader. Reading Distance: >10cm
BSVTES-E-IN
Indoor Type with EM Reader. Reading Distance: >10cm BSVTES-M
Outdoor Type with Mifare Reader. Reading Distance >2.5cm BSVTES-M-IN
Indoor Type with Mifare Reader, Reading Distance: >2.5cm -

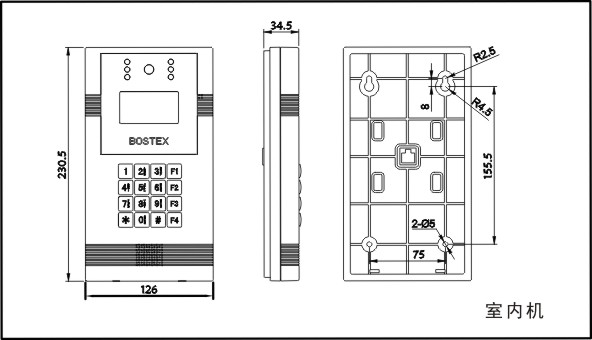

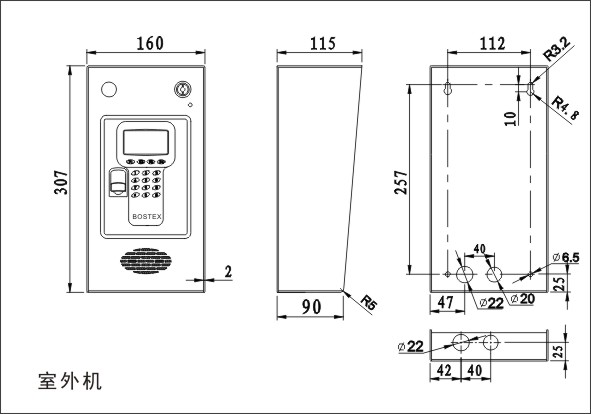

Installation mode:
