BS311-V Series

  • Product overview:

    [Features]
    ◆ Capture image after swapping card to prevent card being used by unauthorized
    ◆ Build-in web server, online surveillance via IE browser
    ◆ Using 32 bit ARM chip set, operate on Linux OS, speed up to 200MHz
    ◆ Direct connection to PC via TCP/IP port. Transmission speed at 100Mbps
    ◆ Maximum 50,000 card holders and 100,000 lines transaction
    ◆ Transaction data can be exported via USB thumb drive
    ◆ Upload image to PC via FTP
    ◆ Using Flash Memory to store data. Data can be store up till 10 years
    ◆ Recoverable 100,000 lines of transaction should there be any system failure
    ◆ Update firmware via TCP/IP or RS-232 connector
    ◆ Smart Door Lock capability
    ◆ Separately configure door access mode by PIN or Time Zone Control
    ◆ Display name and ID when access is granted
    ◆ CE Certified

  • Detail parameters:

    [Functions]

    Functions

    Description

    Camera 1/4＂COMS Sensor，Resolution: 640x480dpi，Focus length: 3.6mm, Angles: 60°，RGB 24bit True Color, Intelligent AE Exposure，Image format: JPEG, Power: 60mA
    Image Capacity Controller keeps up to 300 images, expandable to 100,000 with 1GB SD card. Image size at 8K; upload to computer via FTP.
    Monitoring Built-in Web Server, viewing can be via IE Browser
    Card Open Door Connect to wiegand reader
    Card + PIN Open Door 1. Using Access Controller
    2. Connect external BS36K (Chinese version keypad      reader) via wiegand connector. Set it to free wiegand.
    3. Select either PIN only or Card ID only to open door.
    4. Card + PIN open door: 4 digits PIN; PIN only open door: 8 digits PIN
    PIN Open Door
    Card ID Open Door
    Fingerprint Open Door Connect BS fingerprint card reader via wiegand. At the same time the following mode can be implemented: Card + Fingerprint, ID + Fingerprint, Fingerprint + PIN, Card + Fingerprint + PIN, ID + Fingerprint + PIN, Card Only, Card + PIN, PIN Only , Card ID Only etc.
    Connect External 26/32 Wiegand Card Reader Yes
    Free Wiegand Setup Yes. Can set low battery voltage alarm when use with long range card reader.
    Connect External Keypad Reader 1. Wiegand keypad reader
    2. BS Chinese keypad reader, via wiegand connector
    Connect External BS Fingerprint Reader via wiegand connector
    Connect to Computer 1. RS-232/485 or TCP/IP. Use jumper setting to determine RS-232 or      RS-485
    2. Use keypad to set controller's ID
    3. Use keypad to set controller's IP address, subnet mask and gateway
    Door Force Open Alarm Yes
    Door Open Too Long Alarm 1~255 seconds. Factory default is 5 seconds. Alarm output can be disabled.
    Offline Insert & Delete Card Yes
    Dual Card Verification Yes
    Invalid PIN Control When using Card + PIN open door and number of PIN retry is over preset limits, the door will be remain locked until locking period is over then it is able to use.
    Same Card Delay 0~255 seconds. Factory default is 0
    Time Zone Control 32 groups of time zone
    Holiday Control Yes
    Report Loss Card Yes
    Card Validity Control Yes
    Door Auto Release Time Zone Yes
    Anti-passback Yes
    Card No. Output Bytes 1~4. Default is 4
    Card Display Format HEX,DEC,ABA. Default is DEC
    Communication Monitoring Yes
    PIN and Time zone Control Can be setup to use either PIN control or time zone control
    Tamper Alarm Yes
    Reset Door Open Too Long Record Yes
    Terminal Resistance Setting via jumper
    Sensor Setup Door sensor normal behavior; sensitivity control; whether transaction based on door sensor action.
    User Name Display Display Name and ID after access is granted

    [Technical Specification]

    Parameters

    Description

    CPU ARM9 chip, speed reaching 200MHz
    Operating System

    Linux

    Control Door Area 1
    Connect wiegand reader 2
    Magnetic Sensor Signal 1
    Push Button Signal 1
    TTL Alarm Input 1
    Door Open Relay 1, 12V/1A
    Alarm Relay 1, 12V/1A
    TTL Alarm Output 1, 5V/300mA
    Tamper Switch 1
    Card Capacity 50,000
    Card Matching Speed <0.5 seconds when controller card storage reaching 50,000 cards
    Transaction Capacity 100,000 lines
    COM Port 2 ports. 1 for RS-485 to communicate with PC and the other one via RS-232 to communicate with printer or other devices
    TCP/IP 1, communicate with PC at 10M/100M
    SD Card Support
    USB 2 Master USB
    Operation keypad

    128x64 dots LCD, 4x4 keypad

    Buzzer Yes
    Clock Power Battery CR2032, 3V
    Supply Voltage 9-30V/400mA
    Operation Temperature -10~50 °C
    Dimension 195×161×36mm

    Casing

    		ABS flame-resistant



    [Choosing A Model]


    Model No.

    Description

    BS311-V

    Single Door Video Controller

    BS311-VE

    Video Access Controller c/w EM Card reader. Reading distance:>10cm

    BS311-VM

    Video Access Controller c/w Mifare Card reader. Reading distance:>2.5cm

    BS311-VH

    Video Access Controller c/w HID125 KHZ proximity Card reader. Reading distance:>4cm



  • Installation mode:

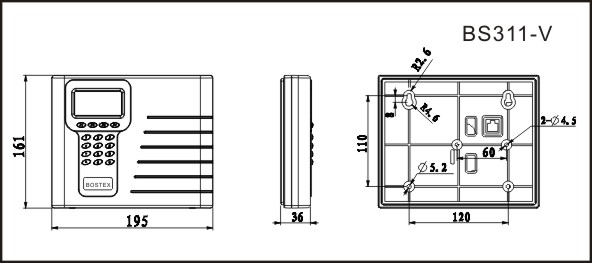

    [Installation Measurement]
