[Features]

◆ Can store up to 1900 fingerprint, matching time < 1 second. Expandable to 9500 templates on board
◆ Matching Mode: 1:1, 1:N and 1:X
◆ Up to a maximum of 10 templates for each user. Support duress alarm using 2nd template
◆ Sensor type: Optical or Capacitive
◆ FAR:Adjustable from 1/10,000 to 1/100,000,000 (FAR and FRR are diametrically opposed,increasing FAR will lower FRR and vice-versa,eg:FAR=0.01%,FRR=1%)
◆ EER < 0.1%(Equal Error rate is a figure discribing at what probablity FAR and FRR is equal;the risk of accepting an impostor is equally as small as the risk of rejecting a legitimate user)
◆ Rapid matching
◆ Dual Finger Mode
◆ Operation Mode: Fingerprint Only, Card + Fingerpring, ID + Fingerprint, Fingerprint + PIN, Card Only, PIN Only, ID Only Card + PIN and etc.
◆ Wiegand 34 bit output. Can be connect directly to BS600-1/BS600-2/BS600-3/BS1000-5 range of controllers
◆ Built-in Card reader. Support EM, Mifare, HID125 KHZ proximity , HID 13.56 MHz iCLASS and TI Card. Can opt to store fingerprint template into Mifare card
◆ Duress finger function. Activate alram when duress finger is used to open door
◆ Connect to 1 wiegand 26/34 reader
◆ Multi-language menu support.
◆ 3 level of user rights: Super User, Administrator and normal user
◆ 128x64 dots large display with white backlight
◆ 4*4 Keypad with blue backlight
◆ Built-in Tamper switch

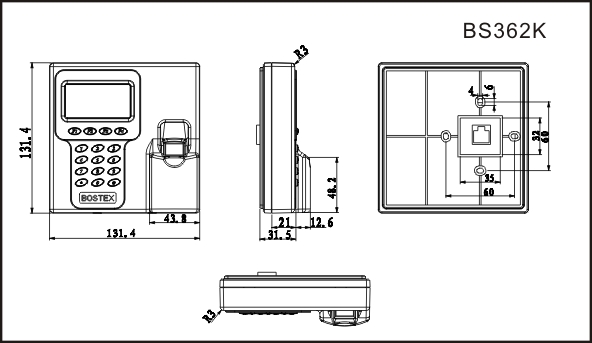

◆ Easy Installation. Dimension：132x132x44mm

[Technical Specification]

[Choosing a Model]
