BS364T Series
-
Product overview:
[Features]
◆ Can store up to 1900 fingerprint，matching time < 1 second. Expandable to 9500 templates on board
◆ Direct TCP/IP connection to PC Host，need not require TCP/IP converter, Transmission Speed at 100M
◆ Maximum 100,000 Card Holders and 100,000 lines transaction
◆ Up to a maximum of 10 templates for each user. Support duress alarm using 2nd template
◆ Sensor type: Optical or Capacitive (for fulfilling different environment)
◆ FAR: Adjustable from 1/10,000 to 1/100,000,000 (FAR and FRR are diametrically opposed, increasing FAR will lower FRR and vice versa, e.g. FAR = 0.01%, FRR ~ 1%)
◆ EER < 0.1% (Equal Error Rate is a figure describing at what probability FAR and FRR is equal; the risk of accepting an impostor is equally as small as the risk of rejecting a legitimate user)
◆ Support built-in EM, Mifare, HID125 KHZ proximity , HID 13.56 MHz iCLASS and TI card reader
◆ Maximum 2 templates can be stored in Mifare Card
◆ Using Flash Memory to store data，data can be kept for 10 years wihtout power up
◆ Recoverable up to 100,000 lines of transaction
◆ Storage full indicator,LCD will indicate when Clock database is full and will stop card reading process
◆ Display Card Holder's Name Employee ID and Time
◆ CE Certified -
Detail parameters:
[Technical Specification]
Parameters
Description
CPU
ARM9，processing speed up to 200MHZ
Operating System
LINUX
Fingerprint Capacity
1900 templates. Expandable to 9500 templates on board
Fingerprint Matching Time
<1 seconds
FAR
Adjustable between 1/10,000 ~ 1/100,100,100
EER
<0.1%
No. of templates per person
10
Max. Card Holder
100,000
Max transaction
100,000 lines
Communicate with Computer
RS-485 or TCP/IP (no converter requirec), speed at 100M
Staff Name Display
Authorize Acess will displayed Staff Name, ID and Clock-in Time
Data Storage
Card Info and Transactions are kept in Flash Memory, guarantee 10 years no data lost
Storage Full Indicator
LCD will indicate when Clock database is full and will stop card reading process
Connect External Wiegand 2
Relay
2, cater for valid and invalid card
Buzzer
1, with valid and invalid indicator
Baud rate
1200-19200bps. Default is 19200bps
Card Number Output Byte
1-4. Default is 4
Card Number Display
HEX,DEC,ABA. Default is DEC
IP Setup
Setup IP Address, Subnet Mask, Gateway vis Keypad
ID Setup
001-255. Default is 1
Monitor Port
Yes
Terminal Resistance
Set using jumper
Keypad
4x4with brightly blue backlight
LCD
128x64 dotssupport bilingual with brightly white backlight
Clock Battery Supply
CR2032,3V
Power Supply
9-30V/400mA
Operation Temperature
-10~50 ℃
Dimension
132×132×49mm
Casing
ABS flame-resistant
-
Installation mode:

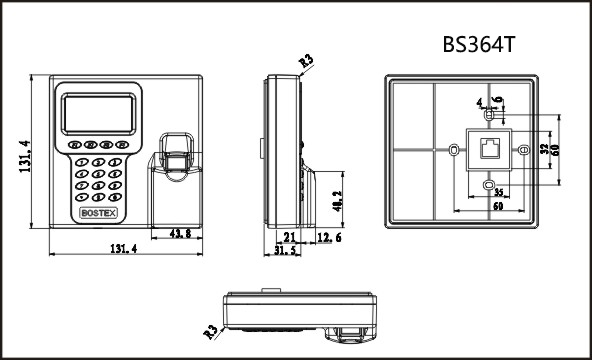

[Installation Measurement]
